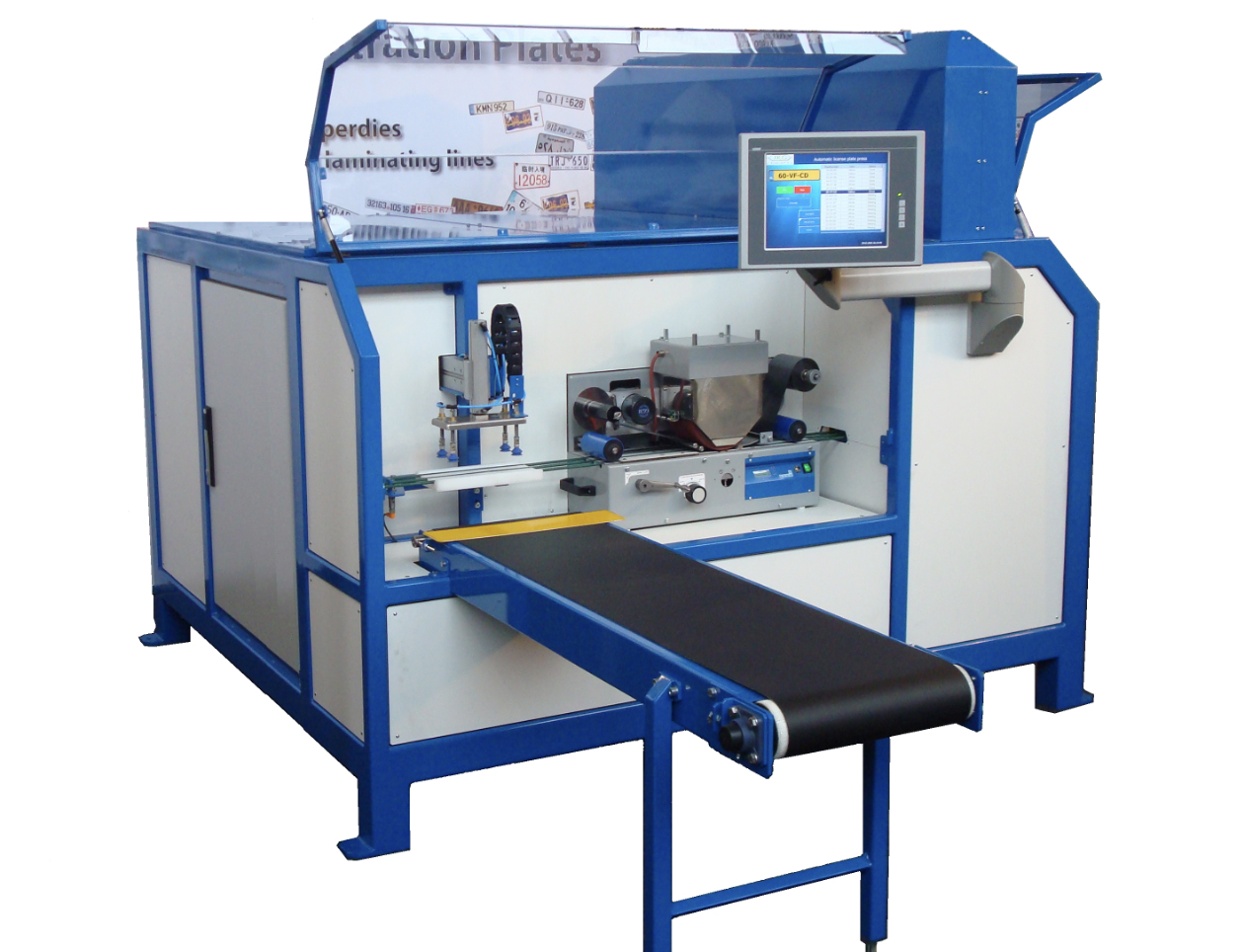

Automatic Embossing System

Automatic embossing machines with a rare combination of innovation, speed, and versatility, this high tech product offers customers a very welcome tool to facilitate the production of final car license plates in large quantities in the least of time. Fully adjustable to the local requirements, this feature is unique on the world market today.

  • State-of-the-art technology and control
  • Full variable spacing and variable length possible
  • Digital servo drives, embedded control, internet/ethernet connection
  • Industrial PC with real time Windows-CE and touch screen
  • Automatic loading of files from registration office
  • Manual input and embossing of series
  • High speed operation, up to 360 plates per hour in basic machine
  • Conveyor connection to laminating line for continuous operation
  • Touch screen interface

Technical specification

Type: AKP-1
Minimum characters on plate: 1
Maximum characters: 8
Production speed: 360 plates / hour
Number of clapper dies: 40
Dimensions (WxHxD): 2400 x 1600 x 2100mm
Plate size: 520 x 110mm

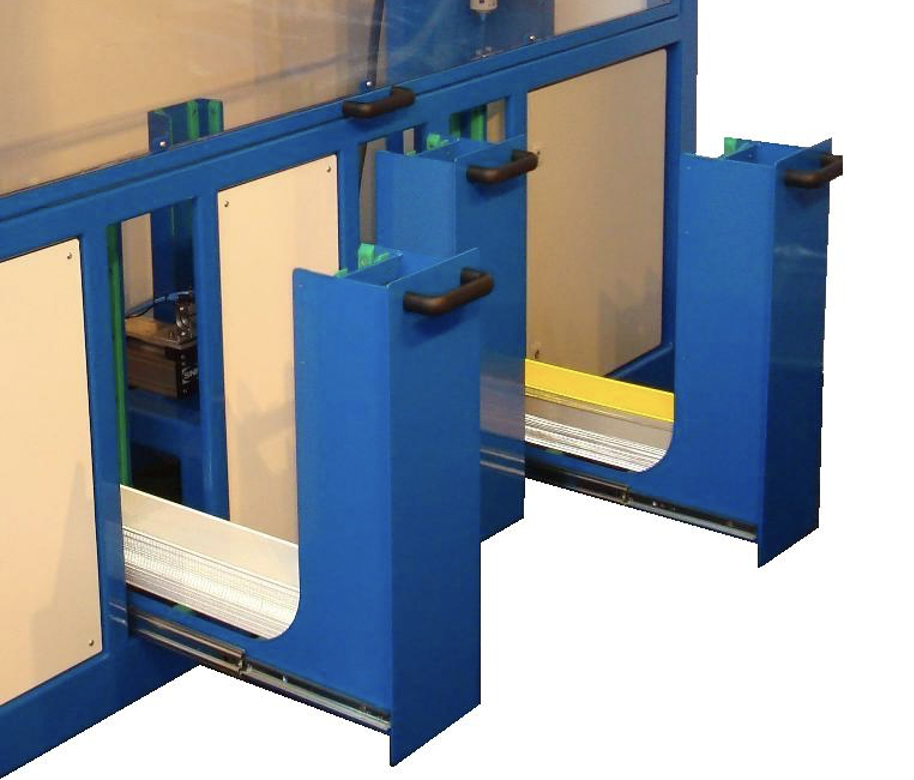

Capacity: 1500 plates (in 3 drawers)
Weight: 850 kg
Mains voltage: 400V  50 Hz  (3 phase)
Power (max.): 12 kW (26 A)

Watch the film about our self-developed car license plate production line here!
