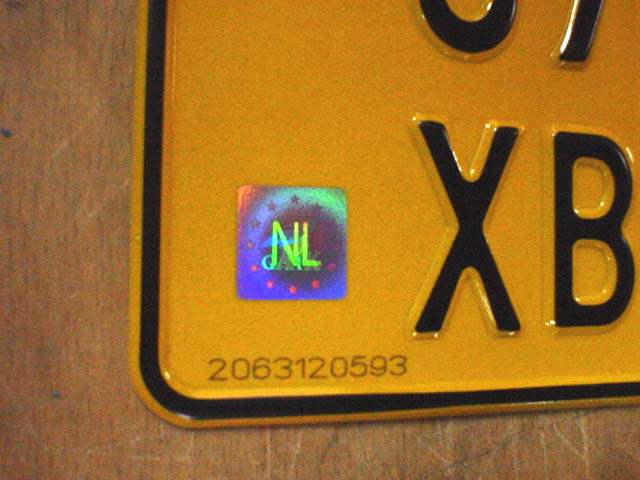

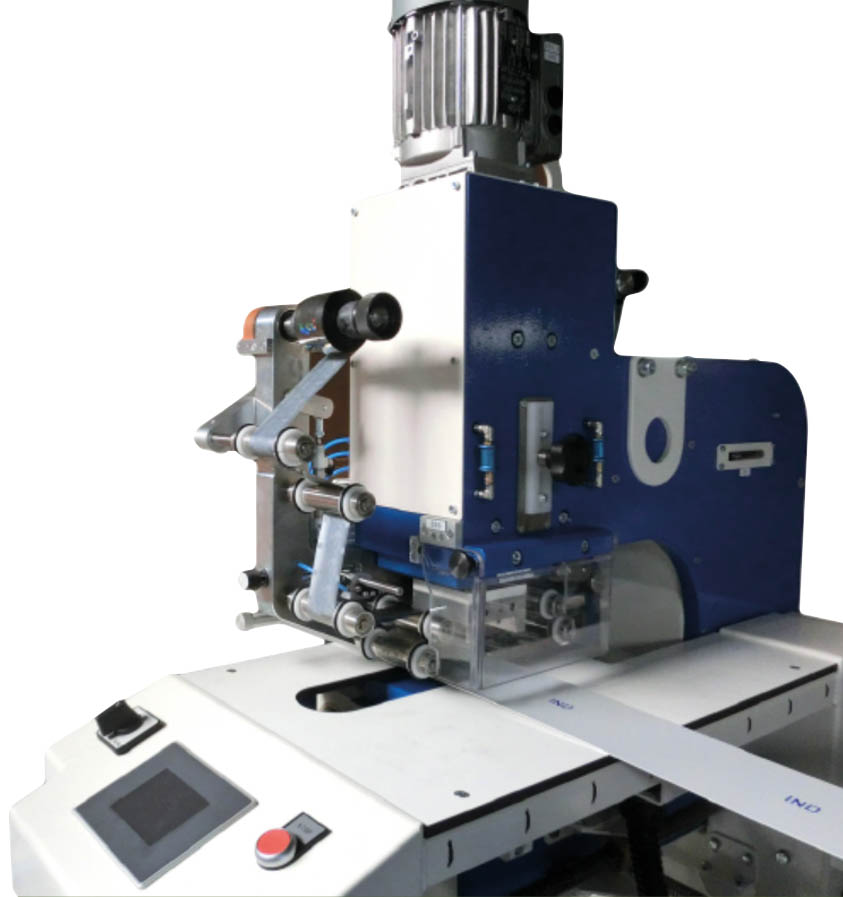

To print a security hologram on the registration plate we have designed a new hologram printer. It is possible to use this printer in stand-alone or in-line. By using two printers on one frame, both the hologram and an additional marking can be printed during the press idle time. It will not slow down the production line. The position of the hologram is easy to adjust, even when running, both in X and Y directions.
Capacity: min. 50 holograms/min.
Pressure: adjustable up to 1000 kg.
Width adjustment: min. 240 mm.
Aluminium coil width: max. 305 mm.
Temperature range: 50 – 200 ºC.
Setting accuracy: +/- 1 ºC.
Process values adjustable on control PLC.
Fiber optical sensor for precise positioning
Options: Automatic positioning X - Y

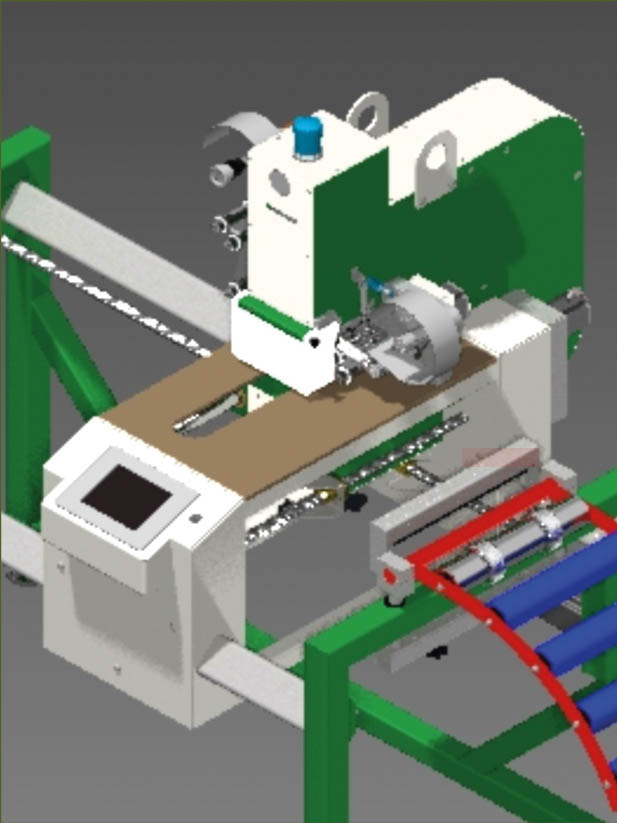

Frame for 1 or 2 machines
Motor driven stamping (non pneumatic)
Power supply: 230V AC, 800W
Air pressure: min. 6 bar, 10 l/min
Printing depth can be regulated by setting bolts. All exterior parts of the machine are made of coated steel, aluminium and stainless steel. This resists corrosion and ensures a long service life.
